Description

 Benefits

Angle adjustment holes allow for easy tuning of downforce

Reinforced pre-preg carbon fiber withstands extreme loads

Interchangeable side plates help to further tune downforce levels



Specifications

Pattern		2×2 twill weave
Material		Pre-preg carbon fiber, 3K
Coating		UV-stable clear coat
Wing Span		70 w variable Angle-of-Attack (AOA) (center section vs outer section angle difference: 10 degrees)
Hardware		Stainless-steel machine screws, washers, and nuts
Mounting		6061 billet aluminum brackets pedestals with application-specific bottom mounting bases



Features

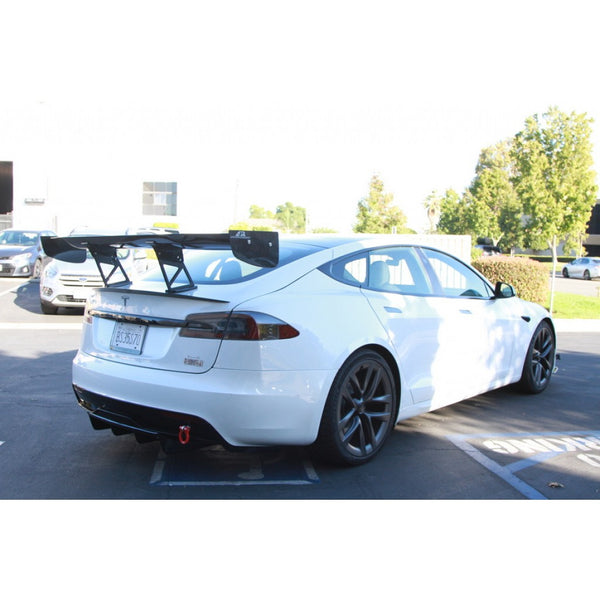

• The APR Performance GTC-500 Adjustable Wing features a 3D airfoil shape that is designed to produce balanced downforce across its span on widebody sports and touring car applications.

•

  • Each GTC Series airfoil is composed of lightweight and durable pre-preg carbon fiber composite materials for superior strength and low weight.

  •

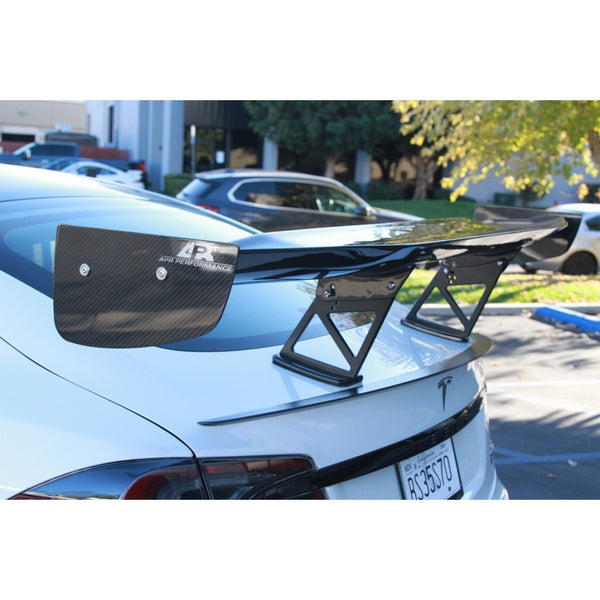

    • Aerodynamically-tuned side plates (aka end plates), included with every GTC Series Adjustable Wing, are critical components that help to ensure consistent airflow across the full span of the airfoil.

    •

      • Supporting the airfoils are 10mm aircraft grade 6061 billet aluminum pedestals that come in a flat black powder coat finish.

      •

        Computational Fluid Dynamics (CFD)

        Modeled in 3D and validated using Computational Fluid Dynamics (CFD), the APR Performance GTC-500 Adjustable Wing is designed to adapt to a variety of widebody sports and touring car applications.



        Gurney Flaps

        Gurney flaps are available for all APR Performance GTC Series (200 300 500) wings. These are super lightweight, made using pre-preg carbon fiber processes, and conform perfectly to the contours of the GTC series 3D airfoils. They are easily attached using the included double-sided tape.



        Wing Dimensions

        Measurements for the GTC-500 Adjustable Wing are shown in the table below. Pedestal-to-pedestal distances are indicated for standard applications. Custom pedestal-to-pedestal distances can be accommodated for custom applications.
